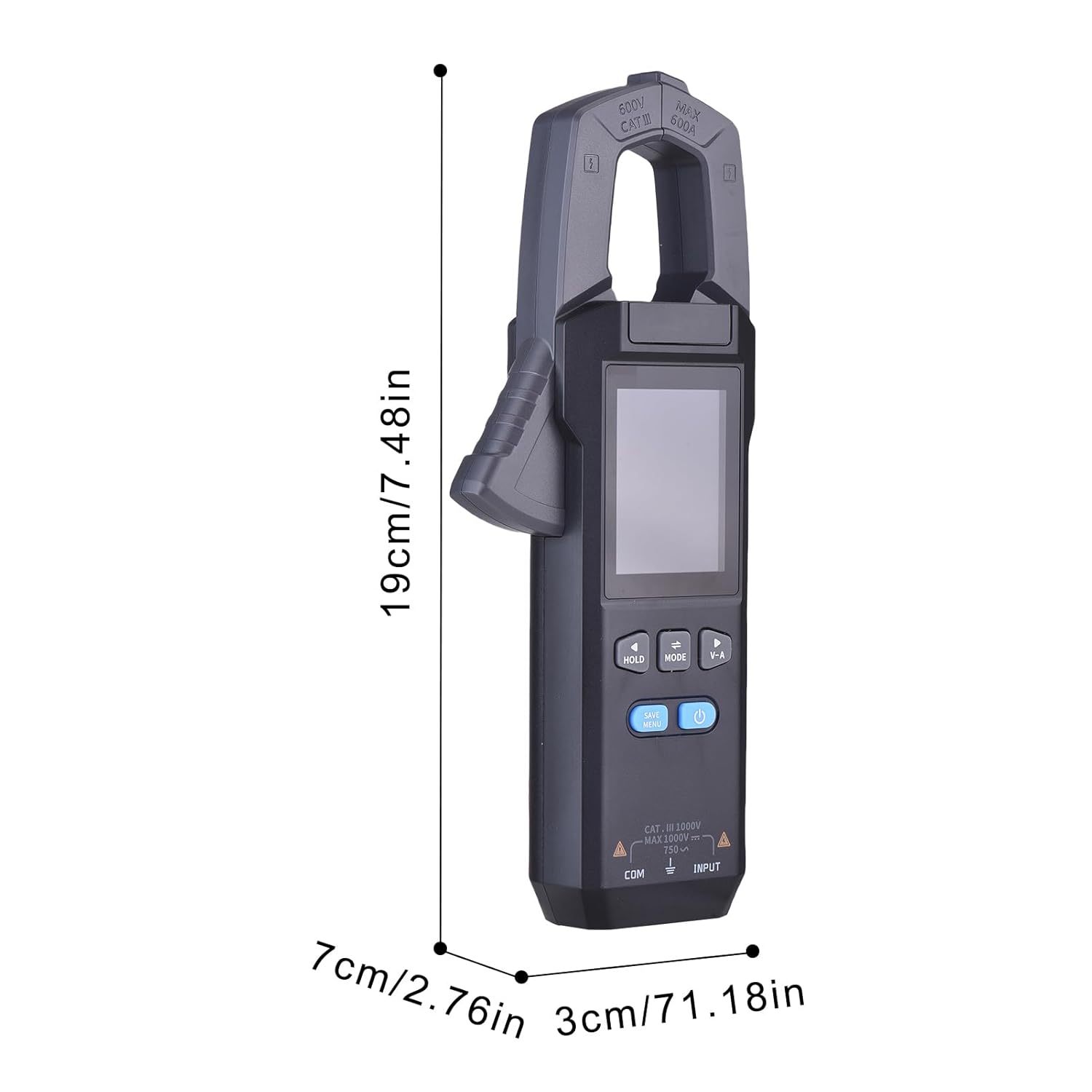

Digital Clamp Meter 9999Counts Multimeter, Smart Digital AC DC Voltage Current Tester with Temperature Probe NCV Detection, Data Hold, Color Screen, Type C (DMC-100)

Spec: Convenient and Product Parameters Item Type: Clamp multimeter Maximum Size of ​: 25mm Screen: 2.0" color screen Screen Resolution: 240*320 pixels Battery Capacity: 3.7V, 1500mAh battery Charging Port: Type-C, 5V/1A Measurement Parameters Temperature: -55~1300℃/-67~2372℉ Diode Measurement: Support On-off Test: Support NonC​ontact​ Voltage Check (NCV): Support Zero Fire Wire Check: Support Other Functions Measuring Mode 1: General measurement Measuring Mode 2: Waveform display Measuring Mode 3: Power measurement Measurement Gear: Manual adjustment Torch: Support Data ​: Support Maximum/Minimum Value: Support Waveform Display: Support Power Calculation: Support Data Hold: Support Data Storage and Viewing: Up to 30 groups of data Language: Chinese/English Brightness Adjustment: 10-speed adjustment Temperature Unit: ℃/℉ Auto Power Off: OFF/5min/15min/30min Firmware Upgrade: Support Product Size: 19.3*7.4*3.2cm/7.59*2.91*1.26in Product Weight: 194g/6.84oz packing list: 1 * Clamp Multimeter 2 * Multimeter Pen 1 * Temperature Probe 1 * Charging Cable 1 * User Manual Notice: 1. Before using the product, please check whether the insulator near the shells​​ and interface is damaged. 2. Please hold your fingers behind the protective device of the test ​. 3. When measuring the circuit to be tested, do not touch all input ports. 4. Please disconnect the test ​ and circuit connection before changing the gear. 5. When the DC voltage to be measured is higher than 36V and the AC voltage is higher than 25V, the user should take precautions to avoid electric shock. 6. Please select the correct gear to measure to avoid damage to the instrument. When all measurements are over-range, the screen displays "OL". 7. When the

• Wide Measurement Range: The digital clamp meter offers 9999Counts. It can measure AC/DC current, AC/DC voltage, resistance, capacitance, continuity, diodes, frequency, and temperature. Suitable for engineering maintenance, laboratory research, or vehicle overhaul, home electrical diagnostics, etc.
• Data Analysis and Storage: This meter allows you to track trends and view maximum/minimum values, providing valuable insights into electrical performance. The built-in memory ensures you to reviewing up to 8 sets of data and store up to 30 sets of historical records for detailed analysis.
• User-Friendly Interface with Clear Display: Featuring a 2-inch full-color backlit display, the clamp meter offers clear and easy-to-read data. It includes a hold function to keep data, three automatic shut-off settings, and 10 levels of brightness adjustment for optimal visibility in any lighting condition.
• Three Measurement Modes: Switch between standard measurement, waveform display, and power calculation modes effortlessly. The power mode simultaneously displays voltage and current, providing a convenient way to monitor and calculate power consumption.
• Convenient and Safe Operation: With a 25mm wide jaw opening, the clamp meter is designed for easy clamping on various wire sizes. It includes a low battery indicator and a flashlight for added convenience. It also includes noncontact voltage detection (NCV) for safe operation.
